Project information

• Category: Electrical Engineering Project
• Organization: University of Virginia
• Project Date: Spring 2019
• Project File: audioVisualizer.pdf

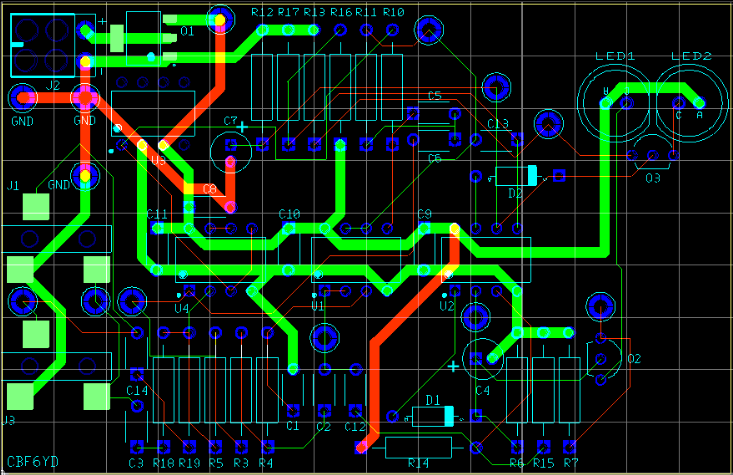

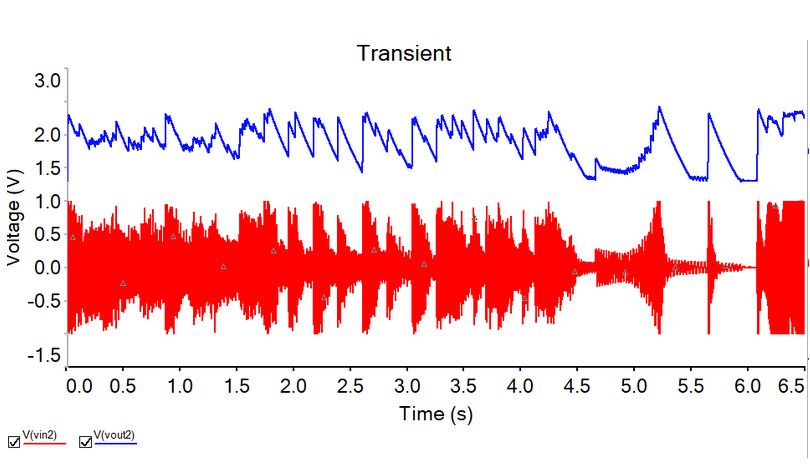

On this project I worked in a small team of electrical engineers tasked with designing an audio visualizer using analog circuitry. The circuit split a given audio signal and separated the signal into high and low frequencies. Thereafter through analog circuitry two RGB LEDs were separately driven based on the strength of incoming high or low frequencies. This allowed these two RGB LEDs to pulsate with respect to the current song's high or low frequencies. Click on the PDF link above for the project documentation.
